$258.38

Red Dot Compressor SD7H15 MDA 125MM PV6 12V Direct Mount

PRODUCT SPECIFICATIONS:

  • Red Dot Part No.: 75R81352
  • Red Dot Factory Part No.: RD-5-11254-0P
  • Sanden Part No.: 4492, 4761
  • Air Source Part No.: 5345
  • Alliance Part No.: ABP N83 304424, ABP N83 304542, ABP N83 304893
  • Freightliner Part No.: 22-48437-000
  • IHC – Navistar Part No.: 2032287C91, 3541235C91
  • Mack Part No.: 4379-RD5112540
  • Volvo Part No.: 85100875, RDHRD5112540P
  • Application: Freightliner Trucks
  • Clutch: 4.9” (125mm) Poly 6
  • Refrigerant Type: R134a
  • Volts: 12V
  • Sanden Model Type: SD7H15
  • Mount Type: Direct Long
  • Head Type: MDA
  • Head Fitting Position: Horizontal Tube-O
  • Head Fitting Size: 1” – 14
  • Cubic Inches: 9.5



Description

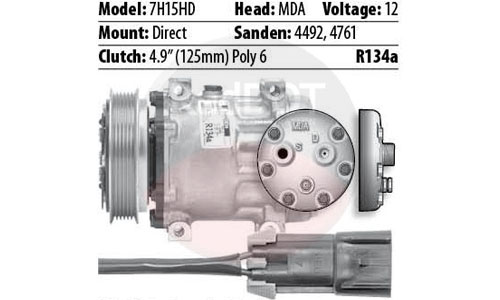

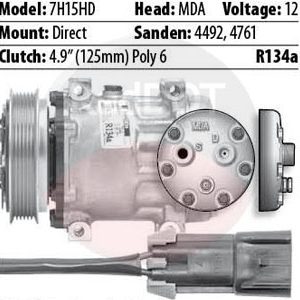

Red Dot 75R81352 Sanden Compressor

Model: 7H15HD

Head: MDA

Voltage: 12

Mount: Direct

Sanden: 4492, 4761

Clutch: 4.9” (125mm) Poly 6

R134a

Freightliner All with OEM Part No. 7H15, MDA head, direct mt, poly 6, 4.9″(125mm) diameter. OEM# 4492, 4761, 22-48437-000

IHC – Navistar 9800 7H15HD, MDA head, direct mt, poly 6, 4.9″ (125mm) diameter. OEM# 3541235C91, ZGG705017

CROSS REFERENCE:
1401127
402063
58709
22-48437-000
ABP N83 304893
4379-RD5112540
5345
3541235C91
ZGG705017
20-04492
RD5112540P
4492
4761
300-4556
RDHRD5112540P



Additional Information
Weight 20 lbs
Dimensions 12 × 8 × 8 in
Manufacturer

RedDOT

Product ID

75R81352
