Shop
$326.24
Red Dot Compressor – SD7H15 4480
PRODUCT SPECIFICATIONS:
- Red Dot Part No.: 75R81492
- Red Dot Factory Part No.: RD-5-11324-0P
- Sanden Part No.: 4480, 4661
- Air Source Part No.: 5314
- Case/Case – IH Part No.: 1149484, 1149487
- Caterpillar Part No.: 114-9484, 114-9887
- Mack Part No.: 4379-RD5113240
- Volvo Part No.: RDHRD5113240P
- Application: Farm & Off Road Applications
- Volts: 12V
- Sanden Model Type: SD7H15SHD
- Mount Type: Ear
- Head Type: KC
- Head Fitting Position: Horizontal O-Ring
- Head Fitting Size: 3⁄4 x 7⁄8
- Cubic Inches: 9.5
- Clutch Type: 5 1⁄2” (138mm) A1 Groove
- Gauge Line: 40mm
- Connector Type: Weatherpak
- No. of Wires: 2
- Clutch Shaft Type: Key
- Refrigerant Type: R134a
Description

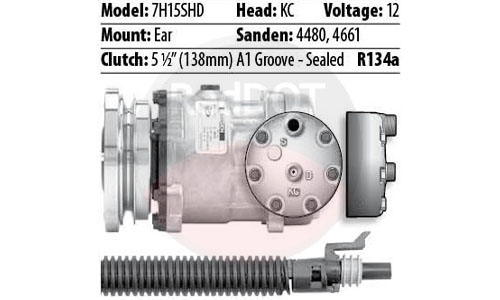

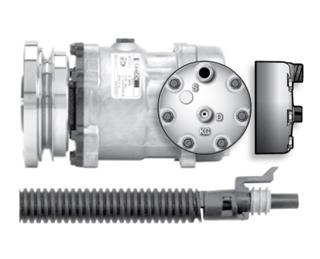

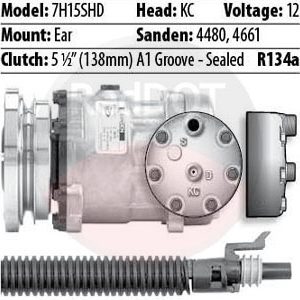

Red Dot 75R81492 Sanden Compressor
Model: 7H15SHD
Head: KC
Voltage: 12
Mount: Ear
Head Fitting Position: Horizontal O-Ring
Head Fitting size: 3⁄4 x 7⁄8
9.5 Cubic Inches
Sanden: 4480, 4661
Clutch: 5 1⁄2” (138mm) A1 Groove – Sealed R134a
Caterpillar All series with Sanden 7H15SHD, 12V, R-12, Sanden OE #4661, Cat OE#114-9484. 7H15SHD, KC head, ear mount, 2A groove, 5 1⁄2″ (138mm) diameter. 4661, 114-9484
CROSS REFERENCE:
4379-RD5113240
5314
RD5113240P
4480
4661
RDHRD5113240P
Additional Information
| Weight | 20 lbs |
|---|---|
| Dimensions | 12 × 8 × 8 in |
| Manufacturer | RedDOT |
| Product ID | 75R81492 |
