$302.09
Red Dot Compressor SD7H15 KG 119MM PV8 12V Ear Mount
PRODUCT SPECS:
- Red Dot Part No.: 75R81562
- Red Dot Factory Part No.: RD-5-11334-0P
- Sanden Part No.: 4739
- Air Source Part No.: 5367
- Alliance Part No.: ABP N83 304394
- Mack Part No.: 4379-RD5113340
- Paccar Part No.: 18-04291, F69-6002-214
- Volvo Part No.: RDHRD5113340P
- Application: Peterbilt Trucks
- Volts: 12V
- Sanden Model Type: SD7H15
- Mount Type: Ear
- Head Type: KG
- Head Fitting Position: Horizontal O-Ring
- Head Fitting Size: 3⁄4 x 7⁄8
- Cubic Inches: 9.5
- Clutch Type: 4.7” (119mm) Poly 8
- Gauge Line: 34mm
- Connector Type: Metripak
- No. of Wires: 2
- Clutch Shaft Type: Spline
- Refrigerant Type: R134a
Description

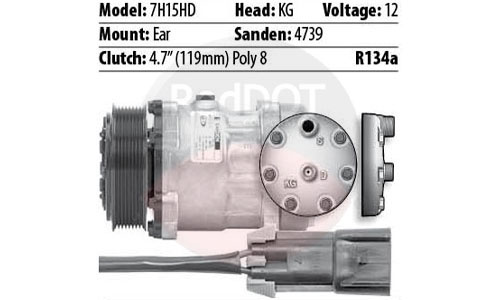

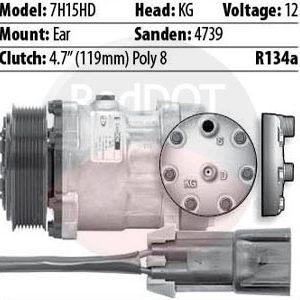

Red Dot 75R81562 Sanden Compressor
Model: 7H15HD
Head: KG Voltage: 12
Mount: Ear
Head Fitting Position: Horizontal O-Ring
Head Fitting Size: 3⁄4 x 7⁄8
9.5 Cubic Inches
Sanden: 4739
Clutch: 4.7” (119mm) Poly 8
Kenworth All with OEM Part No. 7H15HD, 12V, PV8 Groove, 119MM, 2 Wire, KG Head. OEM# 4739SAN, 4739, F69-6002-214, 18-04291
Peterbilt All with OEM Part No. 7H15HD, 12V, PV8 Groove, 119MM, 2 Wire, KG Head. OEM# F69-6002-214, 4739SAN, 18- 04291
CROSS REFERENCE:
1401374
F69-6002-214
58706
ABP N83 304394
18-04291
F69-6002-214
4379-RD5113340
5367
20-04739
18-04291
4739
F69-6002-214
RD5113340P
4739
300-4509
RDHRD5113340P
Additional Information
| Weight | 20 lbs |
|---|---|
| Dimensions | 12 × 8 × 8 in |
| Manufacturer | RedDOT |
| Product ID | 75R81562 |
