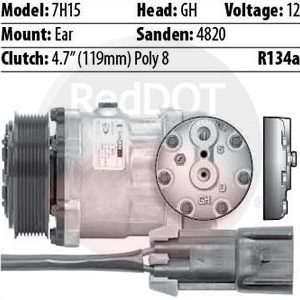

Red Dot Compressor SD7H15 GH 119MM PV8 12V Ear Mount
PRODUCT SPECS:
- Part No.: 75R81612
- Bore: 1.153 in. 29mm
- Stroke: 1.29 in. 33mm
- Displacement per Revolution: 9.5 cu. in. 155cc
- Number of Cylinders: 7
- Maximum Allowable Continuous R.P.M. (Normal Operating Conditions): 6,000
- Refrigerant: R-12 / 134A
- Oil (SUNISO 5GS / SP15): 4.6 fl. oz. (135cc)
- Weight: 16.4 LB. 7.4 kg.
- Rotation: Clockwise
- Sanden Part No.: 4820
- Voltage: 12
- Sanden Model Type: SD7H15
- Mount Type: Ear
- Head Type: GH
- Head Fitting Position: Horizontal Pad
- Head Fitting Size: 3⁄4 x 7⁄8
- Cubic Inches: 9.5
- Clutch Type: 4.7” (119mm) Poly 8
- Gauge Line: 34mm
- Connector Type: Metripak
- No. of Wires: 2
- Clutch Shaft Type: Key
- Sanden Clutch Part No.: 4734-9931, 4705-9931, 4417-9931
- Red Dot Clutch Part No.: 75R1842
- Factory Clutch Part No.: RD-5-10760-0P
- Factory No.: RD-5-11340-0P
Description
Red Dot 75R81612 Sanden Compressor
Model: 7H15
Head: GH
Voltage: 12
Mount: Ear
Head Fitting Position: Horizontal Pad
Head Fitting Size: 3⁄4 x 7⁄8
9.5 Cubic Inches
Sanden: 4820
Clutch: 4.7” (119mm) Poly 8
Freightliner All with OEM Part No. 7H15, GH head, ear mount, poly 8 groove 4.7″(119mm) diameter. OEM# 4820, ABP N83 304913
CROSS REFERENCE:
1401340
58740
ABP N83 304913
SKI 4820
4379-RD5113400
5335
RD5113400P
4820
300-4254
RDHRD5113400P
Additional Information
| Weight | 20 lbs |
|---|---|
| Dimensions | 12 × 8 × 8 in |
| Manufacturer | RedDOT |
| Product ID | 75R81612 |
