Compressor 75R8432

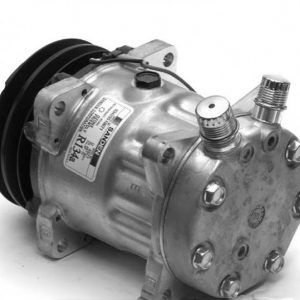

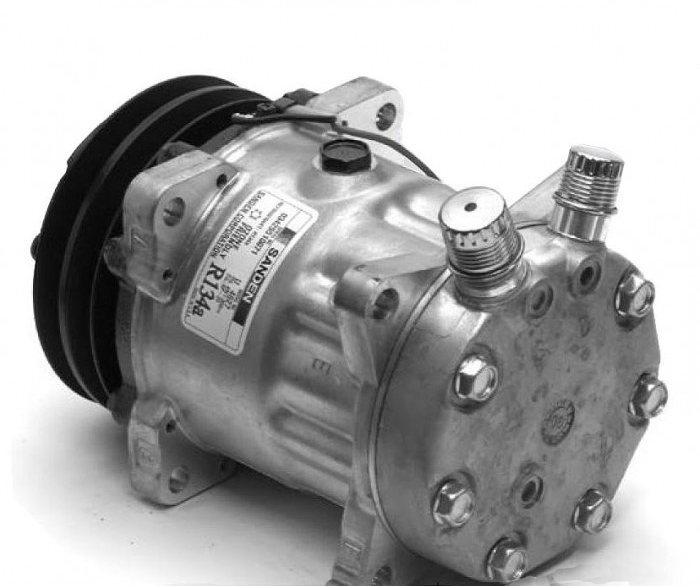

Product image Red Dot 75R8432 compressor

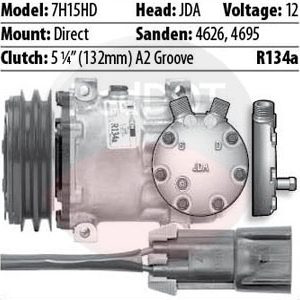

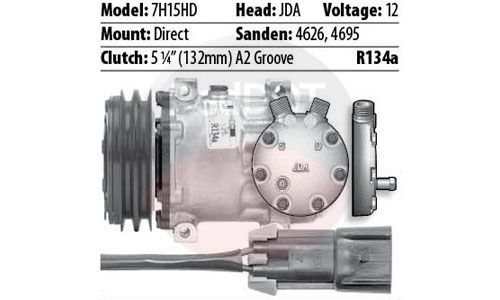

Product image Red Dot compressor with specs

$234.54

Red Dot Compressor – 12V SD7H15 132MM A2 Direct Mount 4626

RedDot 75R8432

PRODUCT SPECS:

  • Part No.: 75R8432
  • Bore: 1.153 in. 29mm
  • Stroke: 1.29 in. 33mm
  • Displacement per Revolution: 9.5 cu. in. 155cc
  • Number of Cylinders: 7
  • Maximum Allowable Continuous R.P.M. (Normal Operating Conditions): 6,000
  • Refrigerant: R-12 / 134A
  • Oil (SUNISO 5GS / SP15): 4.6 fl. oz. (135cc)
  • Weight: 16.4 LB. 7.4 kg.
  • Rotation: Clockwise
  • Sanden Part No.: 4626, 4695
  • Voltage: 12
  • Sanden Model Type: SD7H15
  • Mount Type: Direct Long
  • Head Type: JDA
  • Head Fitting Position: Vertical O-Ring
  • Head Fitting Size: 3⁄4 x 7⁄8
  • Cubic Inches: 9.5
  • Clutch Type: 5 1⁄4” (132mm) A2 Groove
  • Gauge Line: 55mm
  • Connector Type: HD 280 series
  • No. of Wires: 1
  • Clutch Shaft Type: Key
  • Sanden Clutch Part No.: 4626-9931, 4780-9931, 4896-9931, 6511-6010
  • Factory No.: RD-5-7522-0P



Categories: , ,
Description

Red Dot 75R8432 Sanden Compressor

Model: 7H15HD

Head: JDA

Voltage: 12

Mount: Direct

Vertical O-Ring

Head Fitting Size: 3⁄4 x 7⁄8

Sanden: 4626, 4695

Clutch: 5 1⁄4” (132mm) A2 Groove

Freightliner All with OEM Part No. 7H15HD, 12V, 2A Groove, 132MM, 2 Wire, JDA Head, Direct Mount. OEM# 4626, ABP N83 304095

Kenworth All with OEM Part No. 7H15HD, 12V, 2A Groove, 132MM, 2 Wire, JDA Head, Direct Mount. OEM# 4626SAN, 4626, 4695, LE1140, 1CC4696, F69-1000, F69-6001-153

Mack All with OEM Part No. 7H15HD, 12V, 2A Groove, 132MM, 2 Wire, JDA head, Direct Mount. OEM# 206RD49AM, 4626

Peterbilt All with OEM Part No. 7H15HD, 12V, 2A Groove, 132MM, 2 Wire, JDA Head, Direct Mount. OEM# 4695SAN, F69-1002, F69-6002-133, 4626SAN, F69-6001-153, 4626, 4695, LE1140, 1CC4696, F69-1000

Volvo/White GMC All with OEM Part No. 7H15, JD head, direct mount, 2A groove , 5 1/4″ diameter (132mm). OEM# 20370292, 4780

Volvo/White GMC 7H15HD, 12V, 2A Groove, 132MM, 2 Wire, JDA head, Direct Mount. OEM# 8022507, 8177091

Volvo/White GMC 7H15HD, 12V, 2A Groove, 132MM, 2 Wire, JDA head, Direct Mount. OEM# 8022507, 4626

Western Star Constellation, Heritage, 3800, 4800, 4900, 5800, 5900, 6900. 7H15, JD Head, direct mount, 2A groove , 5 1/4″ diameter (132mm). OEM# 20370292, 4780

Western Star 1993-03 Constellation, Heritage, 3800, 4800, 4900, 5800, 5900, 6900 7H15HD, 12V, 2A Groove, 132MM, 2 Wire, JDA Head, Direct Mount. OEM# 61104-3420, 20370292, 4626

CROSS REFERENCE:
5726
1401107
40208
525722
4626SAN
F69-1002
F69-6001-153
F69-6002-133
LE1140
E801172
68579
ABP N83 304095
F69-6001-153
SKI 4626
405905
4626
F69-1002
F69-6001-13
F69-6002-133
LE1140
1401107
402048
4379-RD575220
5726
ZGG19316
20-1007
F69-1002
F69-6001-153
F69-6002-133
RD-5-7522-0P
4626
4695
03-3416
300-4402
8022507
RDHRD575220P

Additional Information
Weight 20 lbs
Dimensions 12 × 8 × 8 in
Manufacturer

RedDOT
Product ID

75R8432
