$20.84

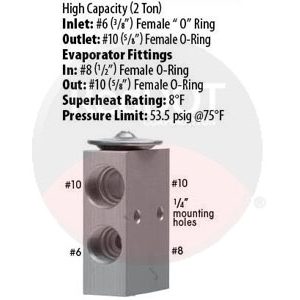

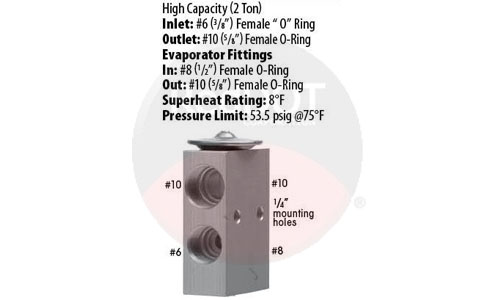

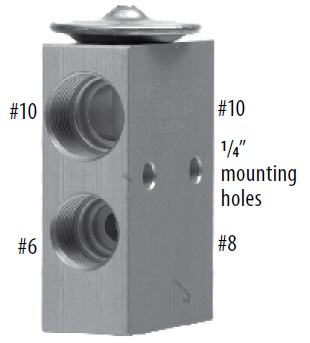

RedDot 71R8321 Expansion Valve RD-5-7015-0P

High Capacity (2 ton)
Inlet: #6 (3/8″) Female O-Ring
Outlet: #10 (5/8″) Female O-Ring
Evaporator Fittings
In: #8 (1/2″) Femaile O-Ring
Out: #10 (5/8″) Female O-Ring
Superheat Rating: 8°F
Pressure Limit: 53.5 psig @ 75°F

Description

1989-96 Freightliner WFC, WFT, FLC Block, #6 #10 #8 #10, with Mounting Holes. OEM# A22-45432-000, ABP N83 308071.

1994-03 Freightliner FL50, FL60, FL70, FL80, FL106, FL112, FLB, FLL Block, #6 #10 #8 #10, with Mounting Holes. OEM# A22-45432-000, ABP N83 308071.

1996-01 Freightliner Century C112, Century C120 Block, #6 #10 #8 #10, with Mounting Holes. OEM# BOA-80-821-00-129.

1997-02 Freightliner All with OEM Part No. Block, #6 #10 #8 #10, with Mounting Holes. OEM# A22-45432-000, ABP N83 308211.

1988-2000 Mack CH Conventional Block, #6 #10 #8 #10, with Mounting Holes. OEM# 4379-RD570150.

1997-07 Peterbilt Model 320. Block, #6 #10 #8 #10, with Mounting Holes EA10660, EA13150, EA1315, 540035.

2000-2002 Volvo / White GMC Model VHD. Block, #6 #10 #8 #10, with Mounting Holes. OEM# 3916182, 3949881, BOA-80-321-00-249.

1993-07 Western Star Constellation 4800, 4900, 5800, 5900, 6900 Block, #6 #10 #8 #10, with Mounting Holes. OEM# RD-5-7015-0.

AGCO, AGCO-Allis 9800, 9815 Block valve with female O-Ring fittings. OEM# 3901517M1.

Allis-Chalmers All combine and tractor model series with OE#329-413 Block valve, Hi – capacity (2 ton) 329-413.

Case All Series using OE#1990756C1, C2 Block valve, Hi – capacity (2 ton), O-Ring fittings 1990756C1-C2. Combines 1620, 1640, 1644, 1660, 1666, 1680, 1688 series Block valve, Hi – capacity (2 ton), O-Ring fittings 1990756C2 RD-5-7015-1P. Combines 2166, 2188, 2344 Axial, 2366 Axial, 2555 series Block valve, Hi – capacity (2 ton), O-Ring fittings 1990756C2. Sprayers SP2000, SP2500, SP3000 series Block valve, Hi – capacity (2 ton), O-Ring fittings 1990756C2. Tractors C, CX series. Tractors Magnum, MX series – 5100, 5200, 7100, 7200. Tractors Quad-Trac series – 9380. Tractors 5120, 5130, 5140, 5220, 5230, 5240 series. Tractors 7110, 7120, 7130, 7140, 7150, 7210, 7220, 7230, 7240, 7250 series. Tractors 8910, 8920, 8930, 8940, 8950 series. Tractors 9210, 9230, 9240, 9250, 9260, 9270, 9280, 9310, 9330, 9350, 9370, 9380 series.

Caterpillar All Series using OE#98370C3, RD-5-7015-0 Block valve, Hi – capacity (2 ton), O-Ring fittings. Challenger 1 35, 45, 55 Series with OE#362.761.0 Block valve, Hi – capacity (2 ton), O-Ring fittings 362.761.0 RD-5-7015-0. Large Haul Trucks with Red Dot A/C unit R-10235-3, -4 Block valve, Hi – capacity (2 ton), O-Ring fittings RD-5-7015-0. Skid Steer A and B series with Red Dot R-10050, R-10050-1 model evaporator Block valve, Hi – capacity (2 ton), O-Ring fittings RD-5-7015-0.

Deutz-Allis All combine and tractor model series with block valve, 2 Ton, OE#329-413 Block valve with female O-Ring fittings. OEM# 329-413.

Ford – New Holland All combine and tractor model series with block valve, 2 Ton, OE#329-403, 329-413. Combine / Tractor P396 Series Block valve with female O-Ring fittings. OEM# 3901517M1.

International (IHC) / Navistar Combines 1400, 1600 series with OE#1990756-C1 Block valve with female O-Ring fittings. Combines 2100 series with OE#1990756-C2.

John Deere All Loader / Tractor model series with OE#AH122867 Block valve with female O-Ring fittings. All Loader / Tractor model series with Red Dot A/C unit R-10035-1thru 4, OE#RE57575. Combines 9400, 9500, 9600 series with OE#AH137702. Combines 9410, 9450, 9510, 9550, 9600, 9610, 9650, 9750 series with OE#AH137702. 8Cotton Pickers 9900, 9910, 9920, 9930, 9940, 9950, 9960, 9965 series with OE#AH137702. Excavators 110, 120, 160LC, 200, 450LC with Red Dot A/C unit R-9500-0-24, R-10034-0 OEM# 329-403, 329-413. Sprayers 6000, 6100, 6500, 6600, 6700 series with OE#AH137702. Wheel Loaders 444H, 544G, 544H, 624G, 624H, 644G with Red Dot A/C unit R-10060-4, R-10151-0, -1.

Linkbelt Excavator 4300, 5800, 6000 series with Red Dot A/C unit R-1620-1-24P, R-1625-0-24P, OE#RD-5-7015-1 Block valve, hi-capacity, 2 ton, female O-Ring. OEM# RD-5-7015-0.

Massey Ferguson Combines 8775 thru 9745 series with OE#3902334M91 Block valve with female O-Ring fittings. Tractor 4200 Series 4220, 4225, 4245, 4255 OE#3901517M1.

Takeuchi Backhoe BL70 with Red Dot A/C, OE#RD-5-7015-0 Block valve with female O-Ring fittings.

Volvo Off-Road Backhoe BL70 series used with Red Dot A/C unit R-9110-0, OE#RD-5-7015-0 Block valve with female O-Ring fittings.

CROSS REFERENCE: 1899005, 71R8321, EA1075, 39073, ABP N83 308071, RDH RD5 7015 0, 4379 RD570150, 4379-RD570151, 1602, 1676665C1, 31-30957, RD-5-7015-0P, RD-5-7015-1P,, 450-6501, 3949397, RDHRD570150P, RDHRD70150P

Additional Information
Weight 2 lbs
Dimensions 4 × 4 × 4 in
Manufacturer

RedDOT

Product ID

71R8321
