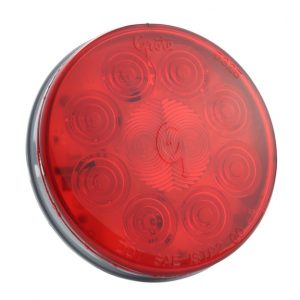

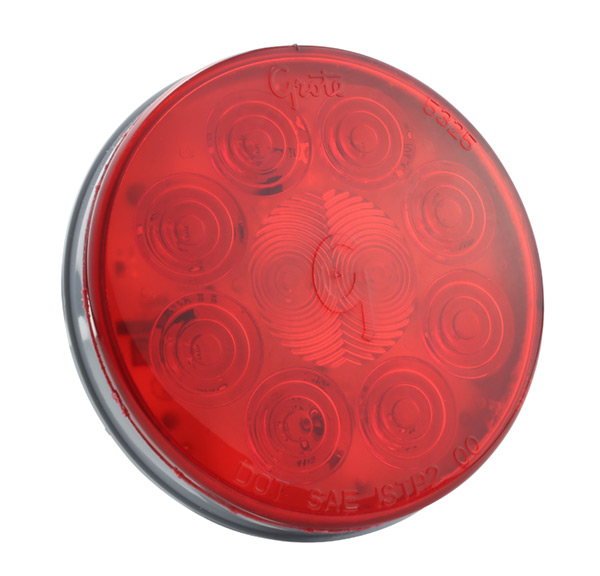

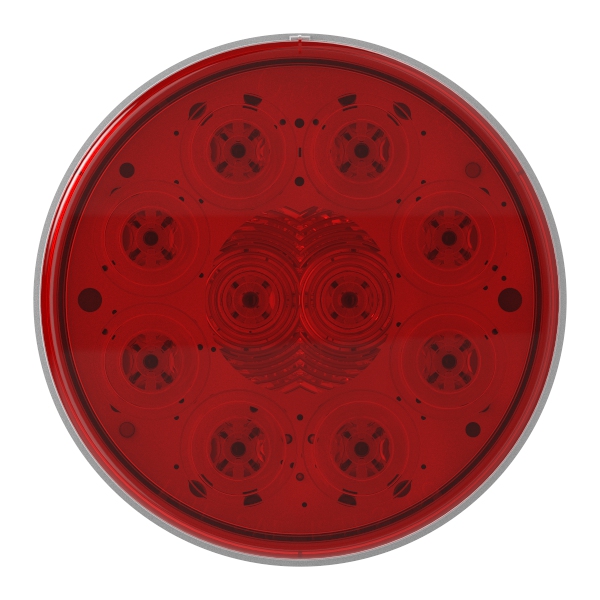

SuperNova® 4" 10-Diode Pattern LED Stop / Tail / Turn Lamp
SuperNova® 4" 10-Diode Pattern LED Stop / Tail / Turn Lamp - Image 2
SuperNova® 4" 10-Diode Pattern LED Stop / Tail / Turn Lamp - Image 3
SuperNova® 4" 10-Diode Pattern LED Stop / Tail / Turn Lamp - Image 4

$26.54

Grote SuperNova® 4″ 10-Diode Pattern LED Stop Tail Turn Lights – Red, Grommet Mount

MALE PIN STOP/TAIL/TURN:

Categories: ,
Description

FEATURES & BENEFITS
• Lens design spreads light for maximum dispersion
• Encapsulant potting for total circuit board protection
• Hermetic lens-to-housing seal
• Advanced Pin Connection System uses tin-plated, solid brass pin terminals

TECHNICAL SPECIFICATIONS

  • Material: Acrylic / ABS
  • FMVSS: S/T/T – I, P2, S, T
  • Auxiliary – P2
  • Finish: Red/ Yellow
  • Voltage Amp: Red – 12V / .24(I,S)/.03(T) A
  • Voltage Amp: Yellow – 12V / .15(P2) A
  • Voltage Amp: Red – 24V / .24(I,S)/.03(T) A
  • Voltage Amp: Yellow – 24V / .12(P2) A

Grote 53252

CROSS REFERENCE:
GRT53252
C542R
53252
GRO 53252
81102
81708
7376-53252
GRO53252
WA22546R
GRO53252
ZBJ53252
ZBJD53252
GR53252
417R-3
817R-2
M417R2
V417KR3
ED40R10
LED40R199
PTL4010R
PTL4018R
GRO 53252
GT53252
44302R
44351R
44974R
44982R
4454
4464

Additional Information
Weight 1 lbs

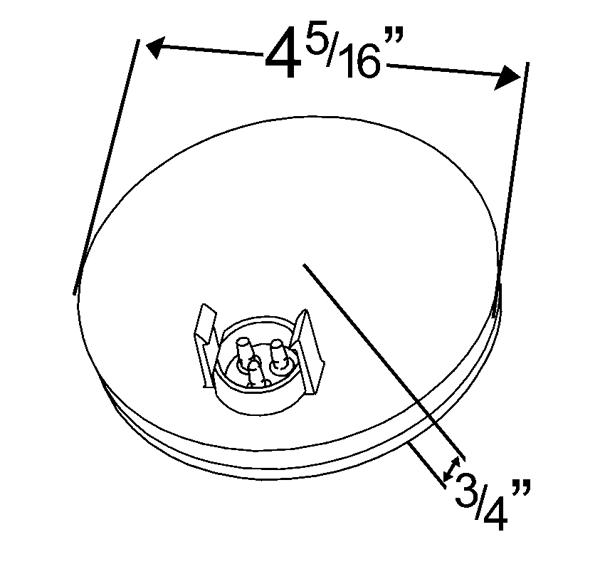

Dimensions 6 × 6 × 2 in
Manufacturer

Grote
Product ID

53252
