$25.45

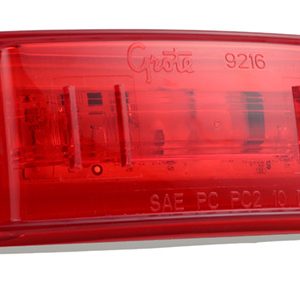

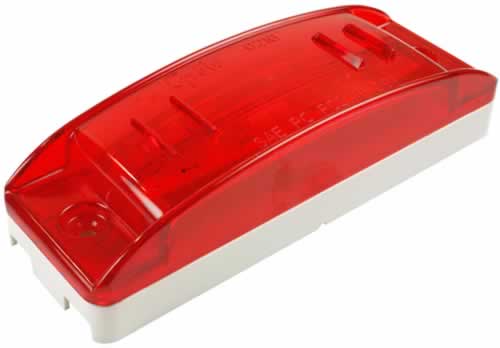

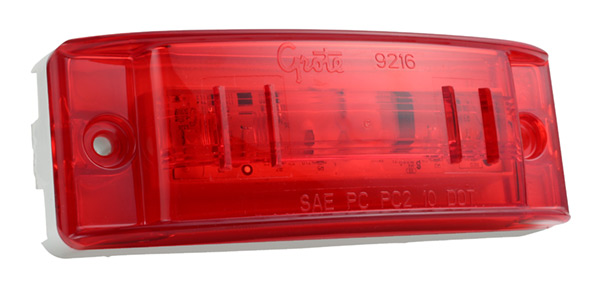

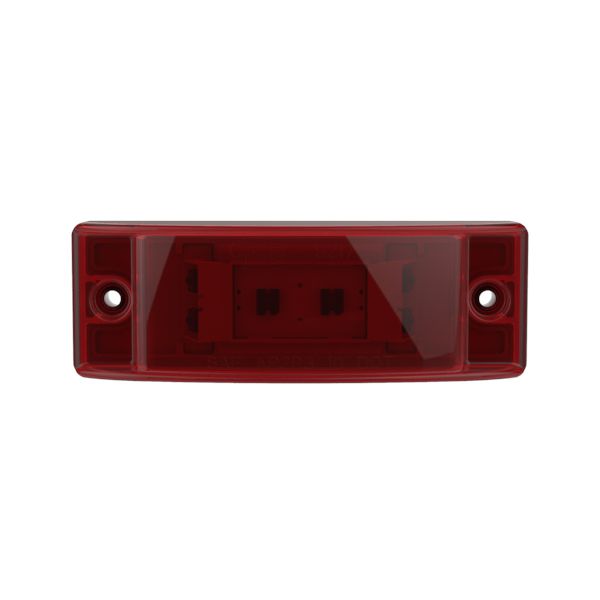

Grote SuperNova® Sealed Turtleback® II LED Clearance Marker Lights – Red
PC RATED: (Optic Lens)
Description
FEATURES & BENEFITS
• Encapsulant potting for total circuit-board protection
• Hermetic lens-to-housing seal
• Tin-plated, solid-brass terminals are sealed to housing, to resist corrosion and eliminate failure-causing leak paths
• Meets PC function only when mounted at a 45° angle
• Not designed for vertical mount
TECHNICAL SPECIFICATIONS
Material: Polycarbonate (Optic) / Acrylic (Reflex)
FMVSS:
Optic – P2, PC
Reflex – A, P2
Finish: Red / Yellow
Voltage Amp: P2 – 12V / .06A
Voltage Amp: PC – 12V / .12A
Voltage Amp: Red – 24V / .03A
Voltage Amp: Yellow – 24V / .04A
CROSS REFERENCE:
GRO 47162
81244
84327
736-47162
GRO47162
ZBJ47162
ZBJD47162
GR47162
187R
GRO 47162
GT47162
21075R
21275R
GRO47162
Additional Information
| Weight | 1 lbs |
|---|---|

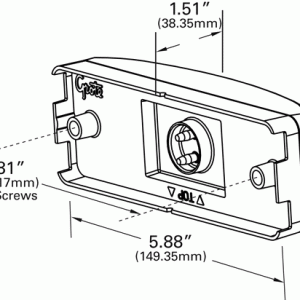

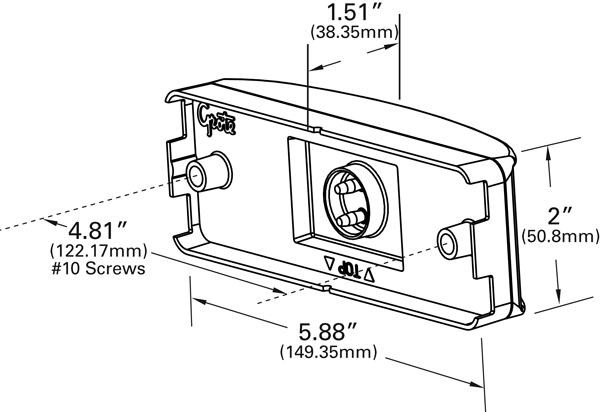

| Dimensions | 6 × 2 × 2 in |
| Manufacturer | Grote |
| Product ID | 47162 |
