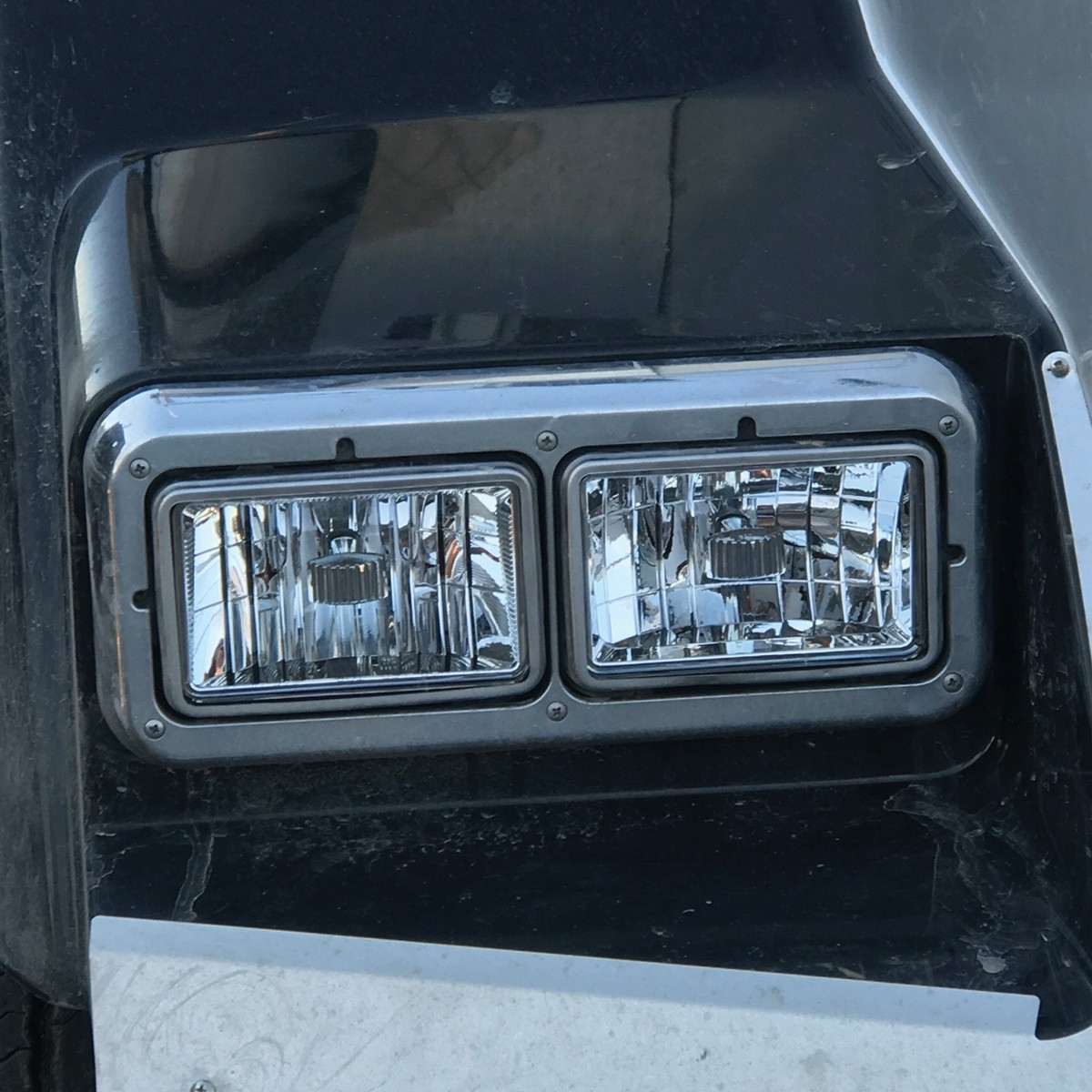

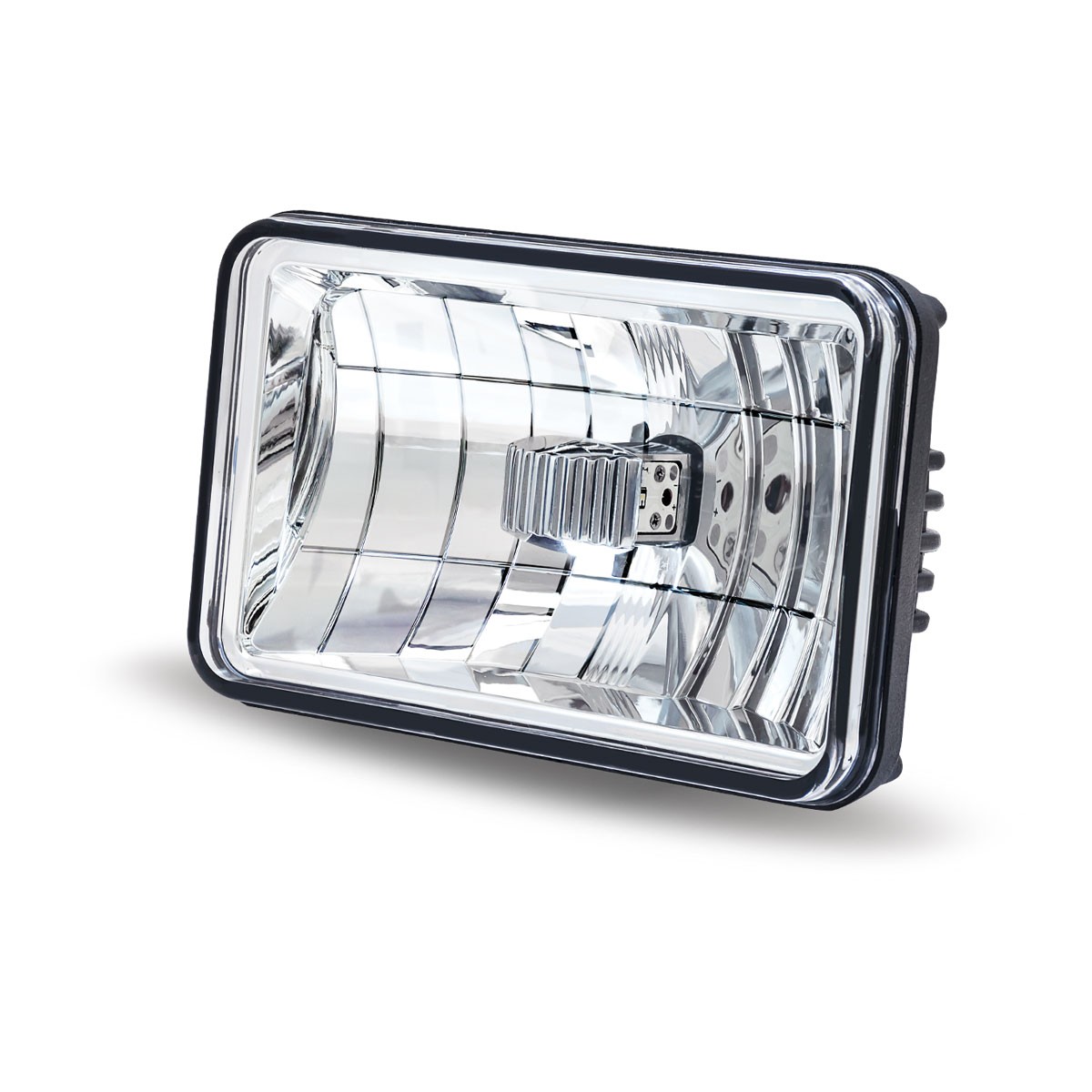

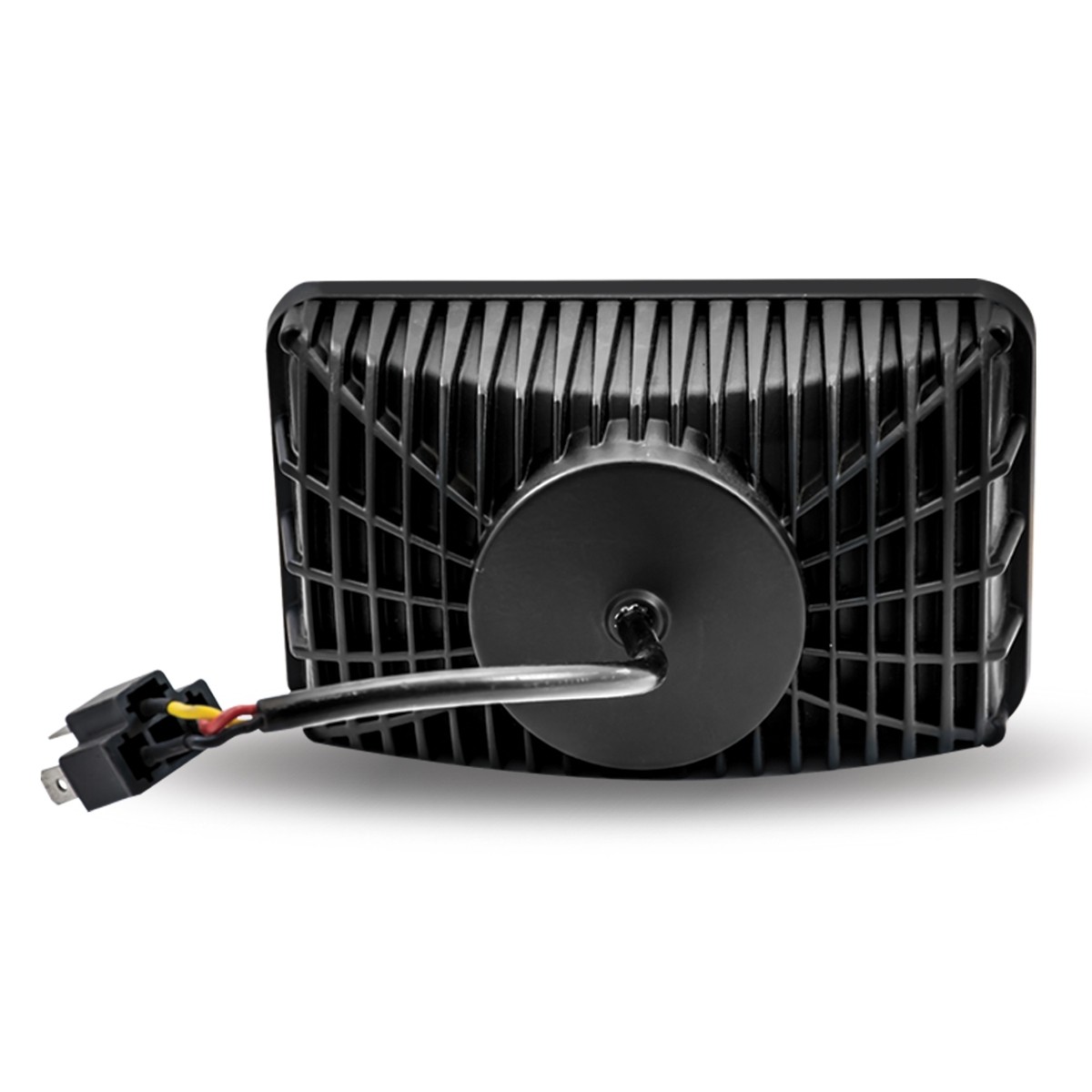

4″ x 6″ LED Headlight – Low Beam

FEATURES:

• DOT Compliant
• Meets FMVSS-108 and CMVSS-108 Standards
• Significantly Brighter than Halogen Headlights
• 1100 Lumens

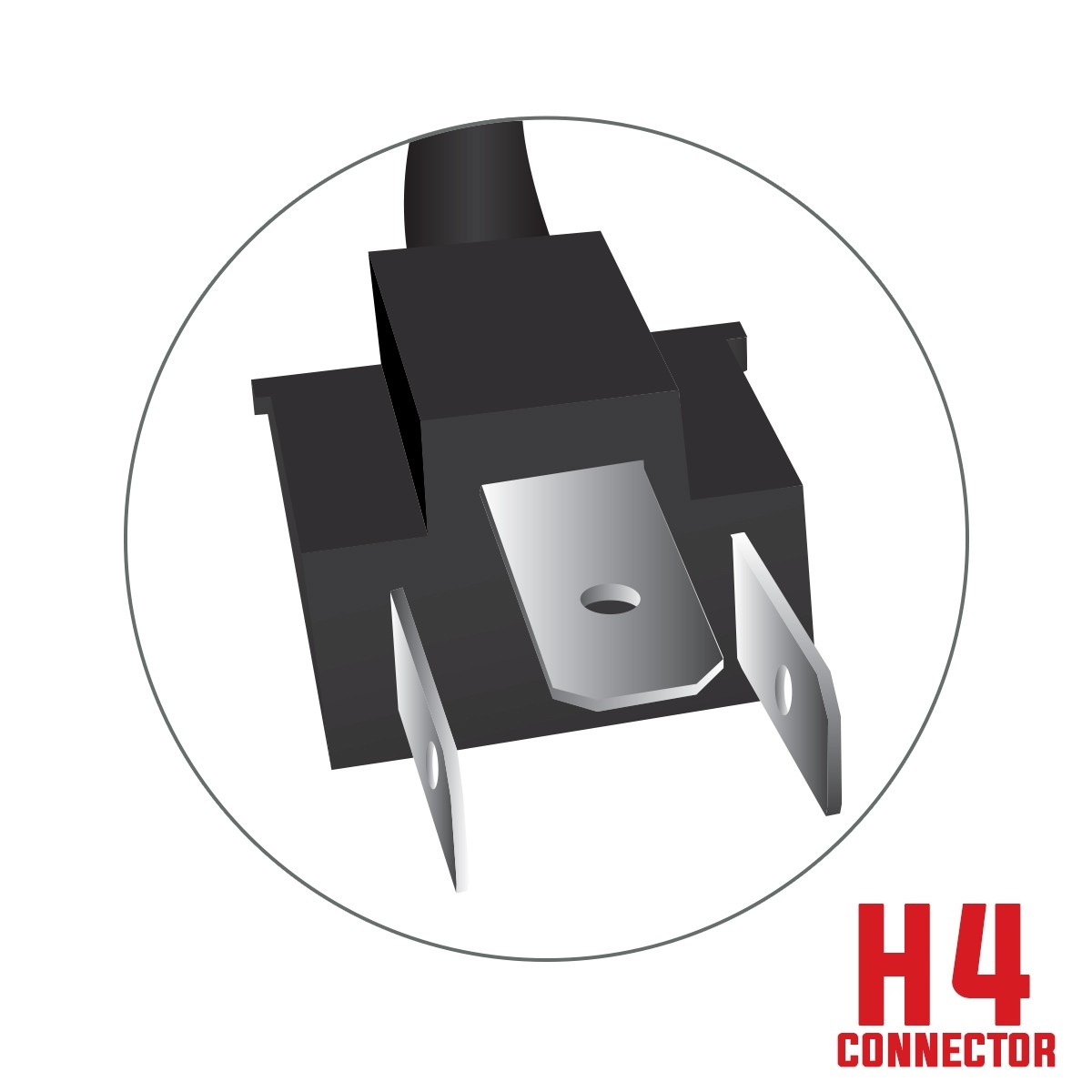

• Standard OEM H4 Blade Connector for Ease of Installation
• Replacement Headlight: H6545, H4666, HP6545, H4668
• Sold Individually
• Designed to Fit Driver / Passenger Side
• DOT Compliance Yes
• Bulb Type Standard LED
• Function Low Beam
• Color Chrome
• LED Power 9 Watts
• Raw Lumens 1100 Lumens
• Effective Lumens 670 Lumens
• Diodes 2 Diodes
• Operating Voltage (V) 9-24 Volts
• Amperage 0.7 Amps @ 12 Volts | 0.4 Amps @ 24 Volts
• Color Temperature 6800K
• Gauge 16 AWG
• Lens Material Polycarbonate
• Housing Material Aluminium Die Cast
• Waterproof Rating IP67 Rating
• What’s Included: H4 Headlight Extension Plug (TPIG-H1)

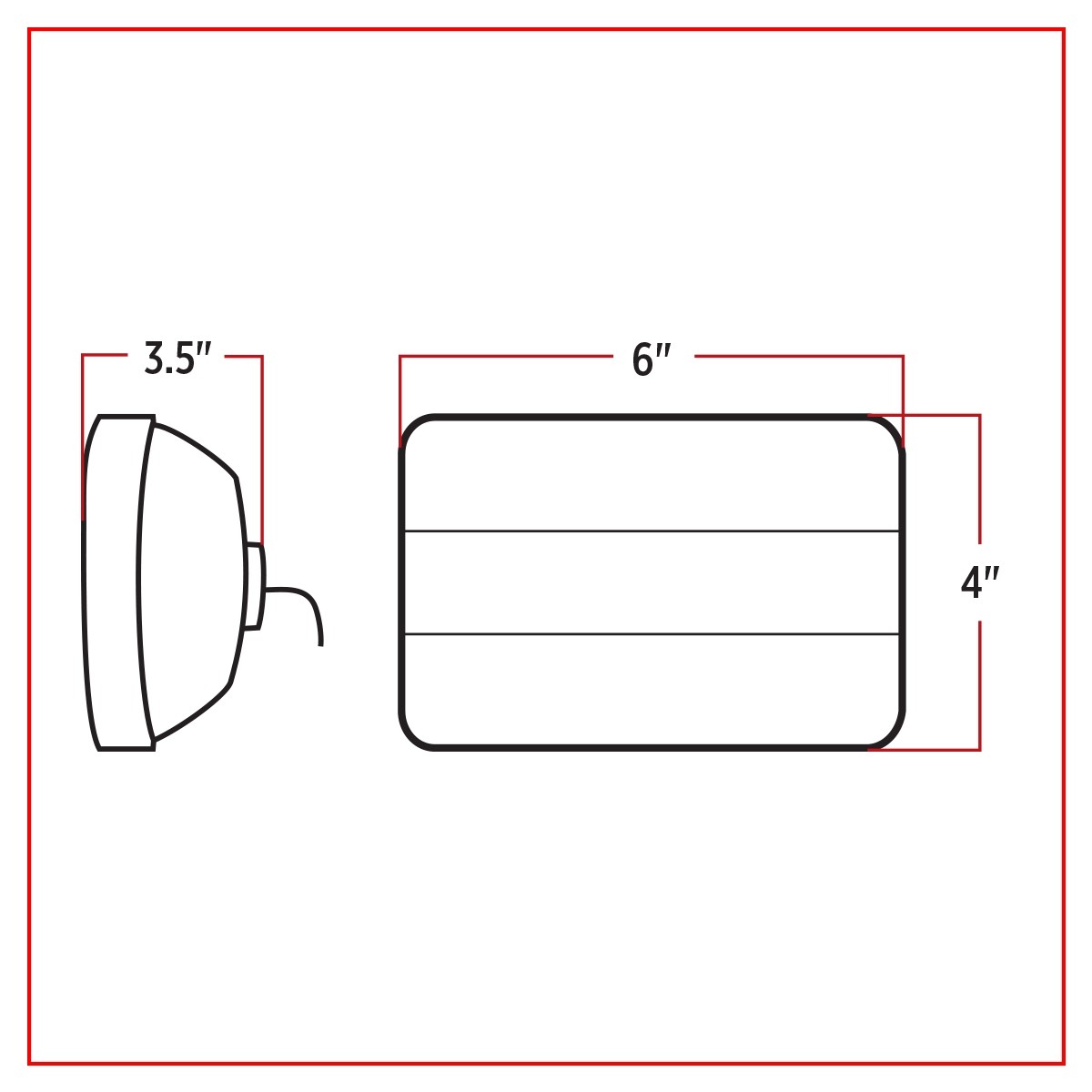

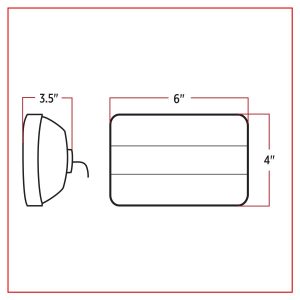

• Dimension (L x W x H) 6″ x 3.3″ x 4″
• Package Dimensions (W” x L” x H”) 7″ x 3.75″ x 4.5″

TLED-H1-H2 Technical Data
