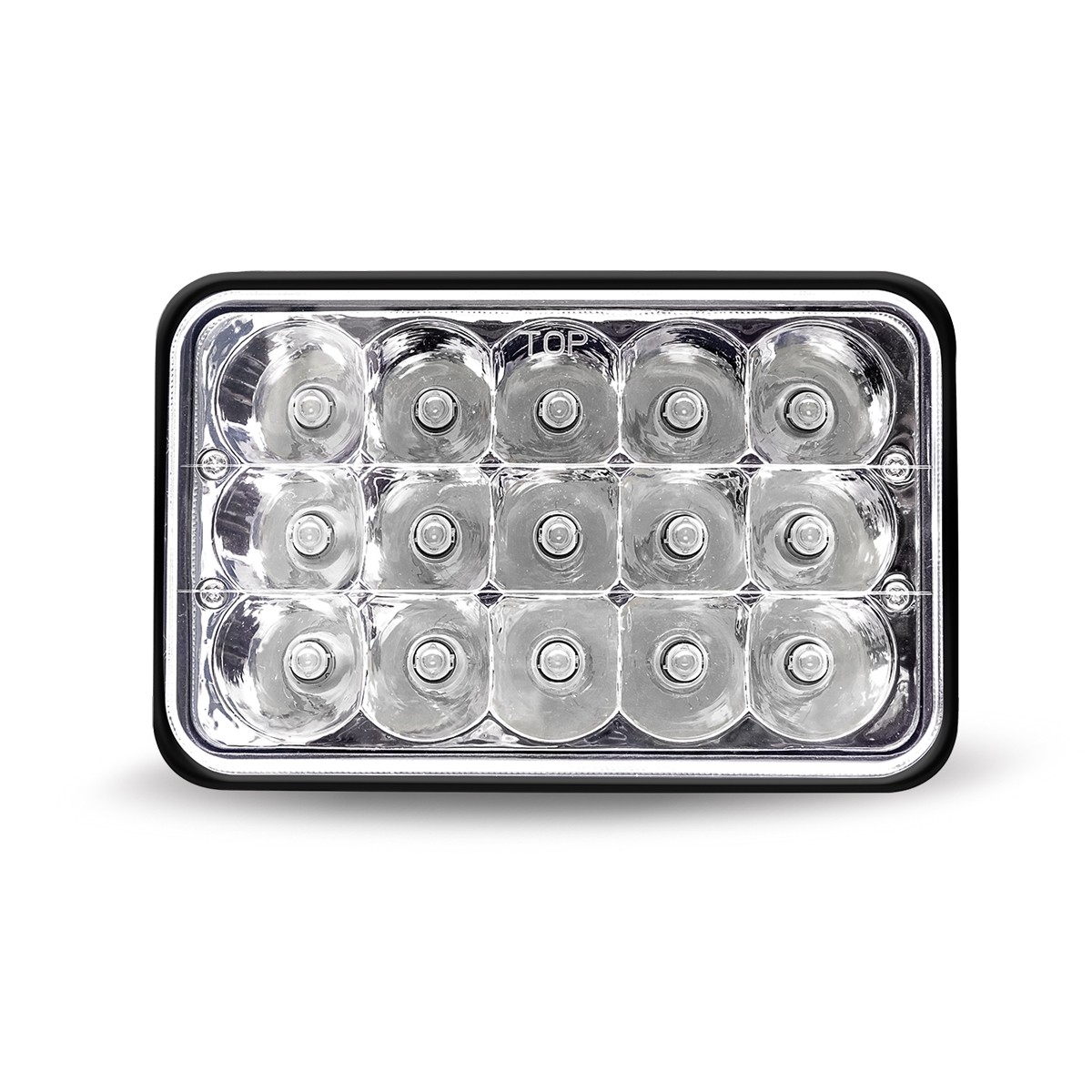

4″ x 6″ LED Projector Headlight (2400 Lumens) – High Beam

FEATURES:

• DOT Compliant
• Meets FMVSS-108 and CMVSS-108 Standards
• LED Projector Technology for Greater Visibility
• Super Bright High Beam with 1150 Effective Lumens
• Standard OEM H4 Blade Connector for Ease of Installation
• Replacement Headlight: H6545, H4666, HP6545, H4668
• Sold Individually
• Designed to Fit Driver / Passenger Side
• DOT Compliance Yes
• Bulb Type LED Projector
• Function High Beam
• Color Chrome
• Beam High Beam
• LED Power 27 Watts
• Raw Lumens 2400 Lumens
• Effective Lumens 1150 Lumens
• Diodes 3 Diodes
• Operating Voltage (V) 10-30 Volts
• Amperage 2.3 Amps @12 Volts
• Color Temperature 6000K
• Lens Material Polycarbonate
• Housing Material Aluminum Alloy
• Waterproof Rating IP67 Rating

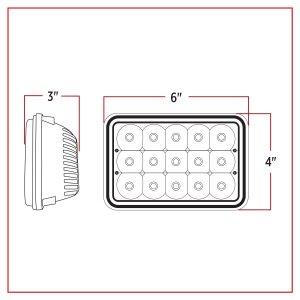

• Dimension (L x W x H) 6″ x 4″ x 4″
• Package Dimensions (W” x L” x H”) 7″ x 4.5″ x 4.75″

Universal Fit Any 4″ x 6″ Headlight Configuration

TLED-H7 H75 Technical Data
